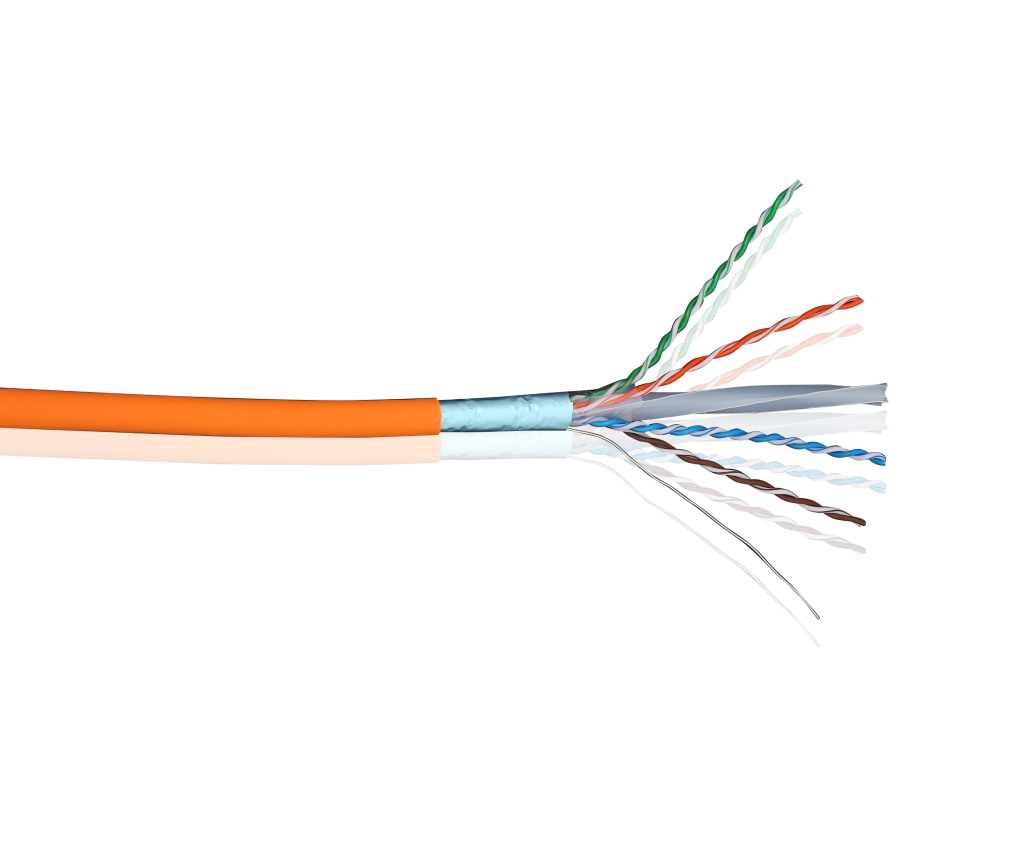

六类屏蔽电缆 Cat.6 F/UTP Cable
| 产品描述 | |||||||||
| 产品编码 | 结构类型 | 导体线规 | 对数 | 成品标称线径 | 护套类型 | 频率 | |||
| LC.60FT01 | F/UTP | 23AWG | 4 | 7.3±0.3mm | PVC | 300Mhz | |||
| LC.60FT02 | F/UTP | 23AWG | 4 | 7.3±0.3mm | LSZH | 300Mhz | |||
| 应用 | 说明 | ||||||||
| 100Base-TX | 额定温度：75℃ | ||||||||
| 100VG-AnyLan | 参考标准：UL444 | ||||||||
| 1000Base-T(千兆位以太网) | 单根裸软铜导线 | ||||||||
| ATM | 符合ROHS/REACH标准的PVC/PE/LSZH外护套 | ||||||||
| 嘈杂环境 | 符合ANSI/TIA-568-C.2&ISO/ICE11801 EN50173&IEC61156-5 | ||||||||
| 电缆安装温度：0℃~+50℃ | |||||||||
| 最小弯曲半径：＞8D | |||||||||
| 电气特性 | |||||||||
| 频率Mhz | 特性抗阻 | 回波损耗 | 衰减 | 近端串音 | 远端串音 | 近端串音功率和 | 远端串音功率和 | 延时差异 | 传播速度 |
| ohm | ≥dB | ≤dB/100m | ≥dB/100m | ≥dB /100m | ≥dB /100m | ≥dB /100m | |||
| 1 | 100±15 | 20 | 1.9 | 74.3 | 67.8 | 72.3 | 64.8 | ≤45 | 68% |
| 4 | 23 | 3.7 | 65.3 | 61.8 | 63.3 | 52.8 | |||
| 8 | 24.5 | 5.3 | 60.3 | 55.7 | 58.8 | 46.7 | |||
| 10 | 25 | 5.9 | 59.3 | 53.8 | 57.3 | 44.8 | |||
| 16 | 25 | 7.5 | 56.3 | 49.7 | 54.3 | 40.7 | |||
| 20 | 25 | 8.4 | 54.8 | 47.8 | 52.8 | 38.7 | |||
| 25 | 24.3 | 9.5 | 53.4 | 45.8 | 51.4 | 36.8 | |||
| 31.25 | 23.6 | 10.6 | 51.9 | 43.9 | 49.9 | 34.9 | |||
| 62.25 | 21.5 | 15.4 | 47.4 | 37.9 | 45.4 | 28.8 | |||
| 100 | 20.1 | 19.8 | 44.3 | 33.8 | 42.3 | 24.8 | |||
| 155 | 18.8 | 25.1 | 41.4 | 27.8 | 39.4 | 20.9 | |||
| 200 | 18 | 29 | 39.8 | 25.8 | 37.8 | 18.7 | |||
| 250 | 17.3 | 32.8 | 38.3 | 24.3 | 36.3 | 16.8 | |||
| 300 | 100±18 | 16.8 | 36.4 | 37.1 | 22.9 | 35.1 | 15.2 |
