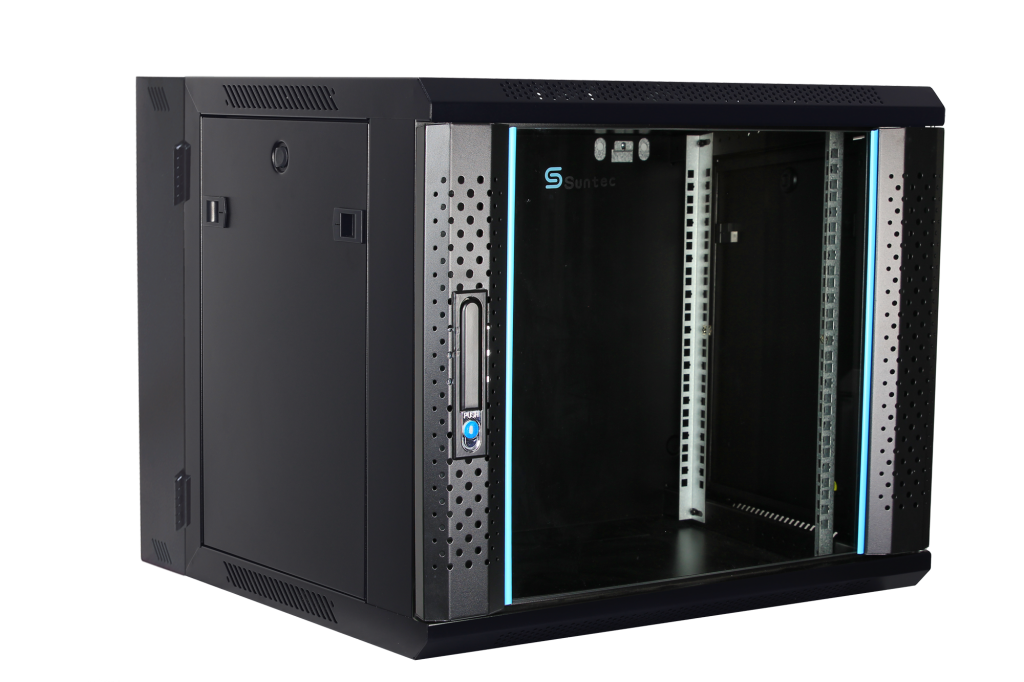

SZS Double Section Wall Mounted Rack/Cabinet

Standard:

  • ANSI/EIA RS-310-D、IEC297-2、DIN41494:PART1、DIN41494:PART7、 GB/T3047.2-92、ETSI

Certification:

  • CE, RoHS，UL

Loading capacity:

  • Static loading: 60KG

Degree of Protection:

  • IP20

Features:

  • Rear swing frame, quite easy access to equipment installation and maintenance;
  • Toughened glass front door with swing handle lock, perforated front door border;
  • Cable entries in the top cover, bottom cover and back panel;
  • Removable side panels
Get Quote

Material:

  • SPCC cold rolled steel;

Surface finish:

  • Degreasing, Silanization, Electrostatic spray powder coated

Sizes available:

  • Capacity(U):6,9,12,15,18,22
  • Width(mm):600
  • Depth(mm):550,600

Optional accessories:

1.Fixed Shelf

2.Cantilever shelf

3.1U ,2U Cable management

4.Roof mount cooling fan

5.PDU ,Power Distribution Unit

Specifications：

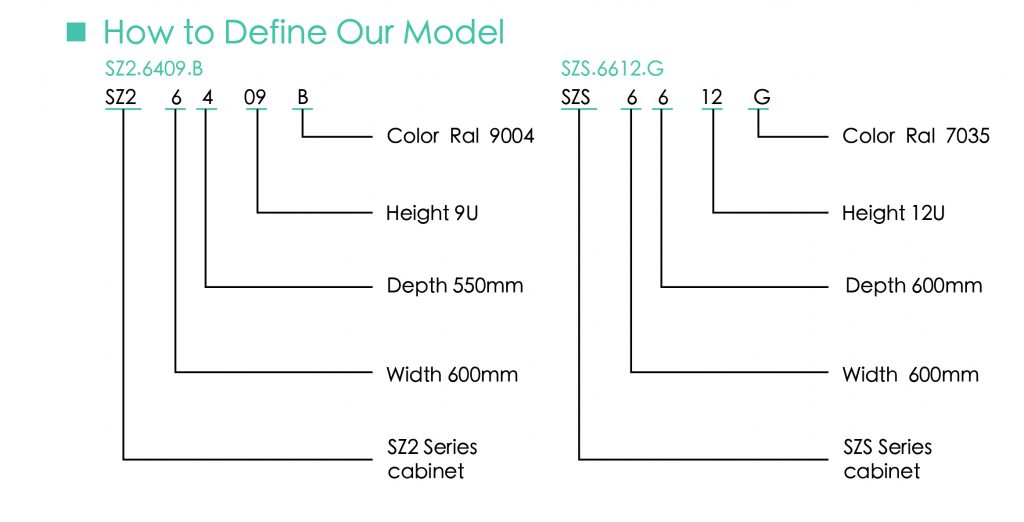

Model No. Capacity (U) Width Depth Height Packing Dimension Volume
(mm) (mm) (mm) W*D*H (CBM)
SZ□.6406.□ 6 600 550 368 670*620*430 0.179
SZ□.6606.□ 600 670*670*430 0.193
SZ□.6409.□ 9 600 550 501 670*620*560 0.233
SZ□.6609.□ 600 670*670*560 0.251
SZ□.6412.□ 12 600 550 635 670*620*695 0.289
SZ□.6612.□ 600 670*670*695 0.311
SZ□.6415.□ 15 600 550 769 670*620*830 0.345
SZ□.6615.□ 600 67*670*830 0.373
SZ□.6418.□ 18 600 550 901 670*620*960 0.399
SZ□.6618.□ 600 670*670*960 0.431
SZ□.6422.□ 22 600 550 1082 670*620*1140 0.474
SZ□.6622.□ 600 670*670*1140 0.512
SZ□.6427.□ 27 600 550 1304 670*620*1365 0.567
SZ□.6627.□ 600 670*670*1365 0.613
