SD Server Rack/Cabinet

Loading capacity:

  • Static loading: 1000KG

Degree of Protection:

  • IP20

Standard:

  • ANSI/EIA RS-310-D、IEC297-2、DIN41494:PART1、DIN41494:PART7、 GB/T3047.2-92、ETSI

Certification:

  • CE, RoHS，UL

Features:

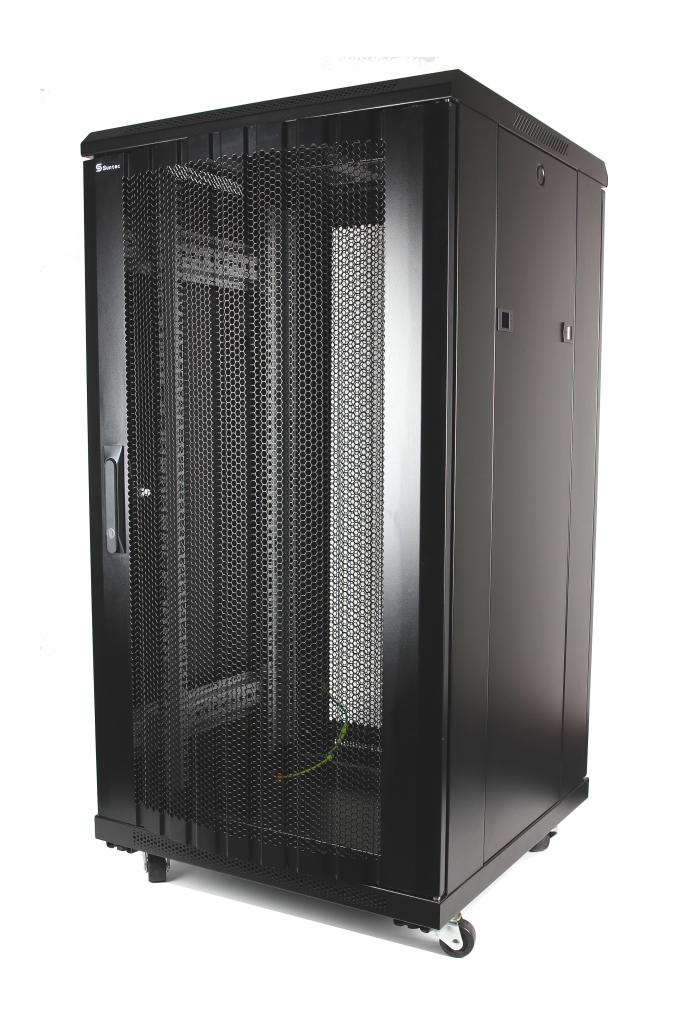

  • Hexagonal perforated & folded arc front door with swing handle lock, hexagonal perforated rear door with swing handle lock, perforation rate: 75%;
  • Adjustable leveling feet and heavy duty castors are available simultaneously;
  • Closable cable entries in the top cover and bottom panel;
  • Removable side panels;
  • Easy and stable structure for fast assembly
  • Around 1/3 assembled original volume when flat pack.





Get Quote

Material:

  • SPCC cold rolled steel;

Surface finish:

  • Degreasing, Silanization, Electrostatic spray powder coated

Sizes available:

  • Capacity(U):18,22,27,32,37,42,47
  • Width(mm):600,800
  • Depth(mm):600,800,1000,1200

Optional accessories:

1.Fixed Shelf

2.Sliding Shelf

3.Cantilever shelf

4.1U ,2U Cable management

5.Roof mount fan unit

6.PDU ,Power Distribution Unit

800width with Vertical Cable Manager
Optional Module roof mounted fan unit
Multi Cable Entries in Top Cover
Adjustable leveling feet and heavy duty castors
Specifications:
Model No. Capacity ( U ) Width Depth Height Packing Dimension Volume
(mm) (mm) (mm) W*D*H (CBM)
S□.6618.□ 18 600 600 988 670*670*1028 0.462
S□.6818.□ 800 670*870*1028 0.599
S□.6918.□ 900 670*970*1028 0.668
S□.6018.□ 1000 670*1070*1028 0.737
S□.6622.□ 22 600 600 1166 670*670*1196 0.537
S□.6822.□ 800 670*870*1196 0.697
S□.6922.□ 900 670*970*1196 0.777
S□.6022.□ 1000 670*1070*1196 0.857
S□.6627.□ 27 600 600 1388 670*670*1418 0.646
S□.6827.□ 800 670*870*1418 0.827
S□.6927.□ 900 670*970*1418 0.922
S□.6027.□ 1000 670*1070*1418 1.017
S□.6632.□ 32 600 600 1610 670*670*1640 0.736
S□.6832.□ 800 670*870*1640 0.956
S□.6932.□ 900 670*970*1640 1.066
S□.6032.□ 1000 670*1070*1640 1.176
S□.6637.□ 37 600 600 1833 670*670*1863 0.836
S□.6837.□ 800 670*870*1863 1.086
S□.6937.□ 900 670*970*1863 1.211
S□.6037.□ 1000 670*1070*1863 1.336
S□.6237.□ 1200 670*1270*1863 1.585
S□.6642.□ 42 600 600 2055 670*670*2085 0.936
S□.6842.□ 800 670*870*2085 1.215
S□.6942.□ 900 670*970*2085 1.355
S□.6042.□ 1000 670*1070*2085 1.495
S□.6242.□ 1200 670*1270*2085 1.774
S□.8642.□ 800 600 870*670*2085 1.251
S□.8842.□ 800 870*870*2085 1.578
S□.8942.□ 900 870*970*2085 1.760
S□.8042.□ 1000 870*1070*2085 1.941
S□.8242.□ 1200 870*1270*2085 2.304
S□.6647.□ 47 600 600 2277 670*670*2307 1.036
S□.6847.□ 800 670*870*2307 1.345
S□.6947.□ 900 670*970*2307 1.499
S□.6047.□ 1000 670*1070*2307 1.654
S□.6247.□ 1200 670*1270*2307 1.963
S□.8647.□ 800 600 870*670*2307 1.345
S□.8847.□ 800 870*870*2307 1.746
S□.8947.□ 900 870*970*2307 1.947
S□.8047.□ 1000 870*1070*2307 2.148
S□.8247.□ 1200 870*1270*2307 2.549
